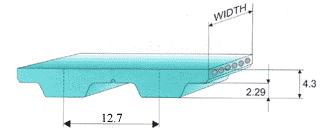

TOOTH DIMENSIONS
TRACTION RESISTANCE
 WIDTH BELT (mm)   12.7 19.1 25.4 38.1 50.8 76.2 101.6 152.4
 MAX TRACTION LOAD (N)   820 1320 1800 2780 3760 5720 7680 11600
 WIDTH TOLERANCE [mm] ±0,5
 THICKNESS TOLERANCE [mm] ±0,3

 WIDTH BELT (inch) 025 037 050 075 100 150 200 300 400 600
 BELT WEIGHT (gr./mt)   38 55 83 110 160 220 325 430 650

FLEXIBILITY

 • minimum no of teeth pulley accepted z 14
 • minimum diameter for inside idler Ø 80 mm

 • minimum no of teeth pulley on the
    back of double teeth belt
z 20
 • minimum diameter for outside idler Ø 80 mm
