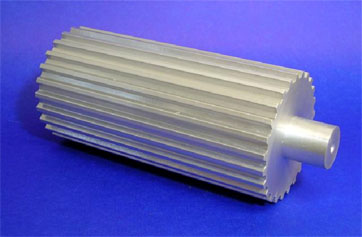

Metric T10 pitch timing bars
|
|
|
Material |
Part No. |
N. of teeth |
PD
(mm) |
OD
(mm) |
UL
(mm) |
L
(mm) |
Aluminum |
T10-10 |
10 |
31.98 |
29.98 |
140 |
140 |
Aluminum |
T10-11 |
11 |
35.16 |
33.16 |
160 |
170 |
Aluminum |
T10-12 |
12 |
38.2 |
36.35 |
160 |
170 |
Aluminum |
T10-13 |
13 |
41.38 |
39.5 |
160 |
170 |
Aluminum |
T10-14 |
14 |
44.56 |
42.7 |
160 |
160 |
Aluminum |
T10-15 |
15 |
47.75 |
45.9 |
160 |
160 |
Aluminum |
T10-16 |
16 |
50.93 |
49.05 |
160 |
160 |
Aluminum |
T10-17 |
17 |
54.11 |
52.25 |
160 |
160 |
Aluminum |
T10-18 |
18 |
57.29 |
55.45 |
160 |
160 |
Aluminum |
T10-19 |
19 |
60.48 |
58.6 |
160 |
160 |
Aluminum |
T10-20 |
20 |
63.66 |
61.8 |
160 |
160 |
Aluminum |
T10-21 |
21 |
66.84 |
65 |
160 |
160 |
Aluminum |
T10-22 |
22 |
70.03 |
68.15 |
160 |
160 |
Aluminum |
T10-23 |
23 |
73.2 |
71.35 |
160 |
160 |
Aluminum |
T10-24 |
24 |
76.39 |
74.55 |
160 |
160 |
Aluminum |
T10-26 |
26 |
82.76 |
80.9 |
160 |
160 |
Aluminum |
T10-28 |
28 |
89.12 |
87.25 |
160 |
160 |
Aluminum |
T10-30 |
30 |
95.49 |
93.65 |
160 |
160 |
Aluminum |
T10-32 |
32 |
101.86 |
100 |
160 |
160 |
Aluminum |
T10-34 |
34 |
108.22 |
106.4 |
160 |
160 |
Aluminum |
T10-36 |
36 |
114.59 |
112.75 |
160 |
160 |
Aluminum |
T10-38 |
38 |
120.95 |
119.1 |
160 |
160 |
Aluminum |
T10-40 |
40 |
127.32 |
125.45 |
160 |
160 |
Aluminum |
T10-45 |
45 |
143.24 |
141.4 |
160 |
160 |
Aluminum |
T10-48 |
48 |
152.78 |
150.95 |
160 |
160 |
Aluminum |
T10-60 |
60 |
190.98 |
189.1 |
160 |
160 |
Aluminum |
T10-72 |
72 |
229.18 |
227.29 |
160 |
160 |
