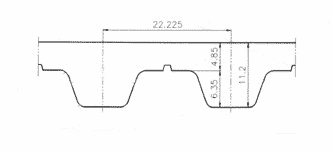

XH (7/8")
WIDTH [in] MAX TRACTION LOAD [N] MAX TRACTION LOAD JOINED [N] BREAKING STRENGTH [N] BELT WEIGHT [kg/m] 1.00 3660 1830 12450 0.33 1.50 5610 2805 19100 0.48 2.00 8050 4025 27400 0.65 3.00 12200 6100 41500 0.97 4.00 16100 8050 54860 1.3 6.00 25300 12650 86400 1.95
Tolerances for belt width (mm) ±1,0 Tolerances for nominal thickness (mm) ±0,50
