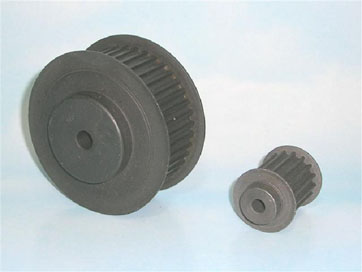

5M timing pulleys

5M 15

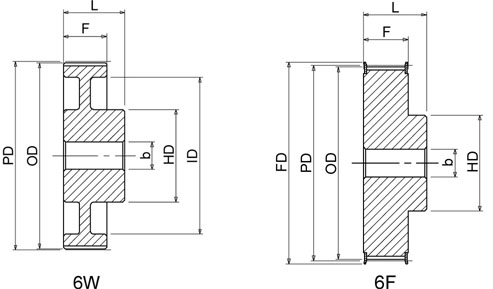

Material
Pulley Type
Designation
N. Of Teeth
PD
(mm)
OD
(mm)
FD
(mm)
HD
(mm)
ID
(mm)
F
(mm)
L
(mm)
b
(mm)
Weight (kg)
Steel
6F
12 5M 15 - 6F
12
19.1
17.96
23
13
-
20.5
26
4
0.04
Steel
6F
14 5M 15 - 6F
14
22.28
21.14
25
14
-
20.5
26
6
0.05
Steel
6F
15 5M 15 - 6F
15
23.87
22.73
28
16
-
20.5
26
6
0.06
Steel
6F
16 5M 15 - 6F
16
25.46
24.32
28
16.5
-
20.5
26
6
0.07
Steel
6F
18 5M 15 - 6F
18
28.65
27.51
32
20
-
20.5
26
6
0.09
Steel
6F
20 5M 15 - 6F
20
31.83
30.69
36
23
-
20.5
26
6
0.12
Steel
6F
21 5M 15 - 6F
21
33.42
32.28
38
24
-
20.5
26
6
0.13
Steel
6F
22 5M 15 - 6F
22
35.01
33.87
38
25.5
-
20.5
26
6
0.14
Steel
6F
24 5M 15 - 6F
24
38.2
37.06
42
27
-
20.5
28
6
0.18
Steel
6F
26 5M 15 - 6F
26
41.38
40.24
44
30
-
20.5
28
6
0.22
Steel
6F
28 5M 15 - 6F
28
44.56
43.42
48
30.5
-
20.5
28
6
0.25
Steel
6F
30 5M 15 - 6F
30
47.75
46.6
51
35
-
20.5
28
6
0.3
Steel
6F
32 5M 15 - 6F
32
50.93
49.79
54
38
-
20.5
28
8
0.35
Steel
6F
36 5M 15 - 6F
36
57.3
56.16
60
38
-
20.5
28
8
0.43
Steel
6F
40 5M 15 - 6F
40
63.66
62.52
71
38
-
20.5
28
8
0.52
Aluminum
6W
44 5M 15 - 6W
44
70.03
68.89
-
38
56.5
20.5
30
8
0.23
Aluminum
6W
48 5M 15 - 6W
48
76.39
75.25
-
38
61
20.5
30
8
0.19
Aluminum
6W
60 5M 15 - 6W
60
95.49
94.35
-
50
80
20.5
30
8
0.3
Aluminum
6W
72 5M 15 - 6W
72
114.59
113.45
-
50
100
20.5
30
8
0.38
