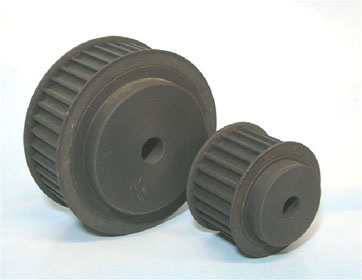

8M timing pulleys

8M 30

Material

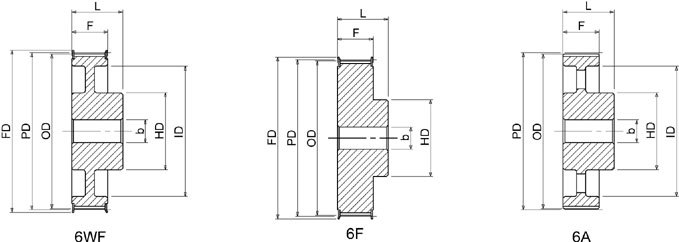

Pulley Type
Designation
N. Of Teeth
PD
(mm)
OD
(mm)
FD
(mm)
HD
(mm)
ID
(mm)
Steel
6F
20 8M 30 -6F
20
50.93
49.56
54
36

Steel
6F
21 8M 30 -6F
21
53.48
52.11
57
40

Steel
6F
22 8M 30 -6F
22
56.02
54.65
60
43

Steel
6F
23 8M 30 -6F
23
58.57
57.2
63
43

Steel
6F
24 8M 30 -6F
24
61.12
59.75
66
45

Steel
6F
25 8M 30 -6F
25
63.66
62.29
69
45

Steel
6F
26 8M 30 -6F
26
66.21
64.84
71
50

Steel
6F
27 8M 30 -6F
27
68.75
67.39
73
50

Steel
6F
28 8M 30 -6F
28
71.3
70.08
75
50

Steel
6F
28 8M 30 -6F
29
73.85
72.48
75
55

Steel
6F
30 8M 30 -6F
30
76.39
75.13
83
55

Steel
6F
32 8M 30 -6F
32
81.49
80.16
87
60

Steel
6F
34 8M 30 -6F
34
86.58
85.22
91
70

Steel
6F
36 8M 30 -6F
36
91.67
90.3
98.5
70

Steel
6F
38 8M 30 -6F
38
96.77
95.39
103
75

Cast Iron
6F
40 8M 30 -6F
40
101.86
100.49
106
75

Cast Iron
6F
44 8M 30 -6F
44
112.05
110.67
119
75

Cast Iron
6F
48 8M 30 -6F
48
122.23
120.86
127
75

Cast Iron
6WF
56 8M 30 -6WF
56
142.6
141.23
148
90
117
Cast Iron
6WF
64 8M 30 -6WF
64
162.97
161.6
168
90
137
Cast Iron
6WF
72 8M 30 -6WF
72
183.35
181.97
192
95
158
Cast Iron
6A
80 8M 30 -6A
80
203.72
202.35

100
180
