8M timing pulleys

8M 85

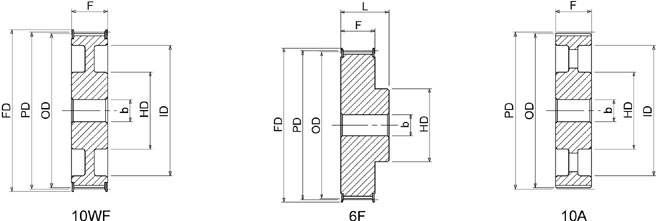

Material
Pulley Type
Designation
N. Of Teeth
PD
(mm)
OD
(mm)
FD
(mm)
HD
(mm)
ID
(mm)
F
(mm)
L
(mm)
b
(mm)
Weight (kg)
Steel
6F
22 8M 85 -6F
22
56.02
54.65
60.0
43.0
-
95.0
105.0
12.0
1.55
Steel
6F
24 8M 85 -6F
24
61.12
59.75
66.0
45.0
-
95.0
105.0
12.0
1.90
Steel
6F
26 8M 85 -6F
26
66.21
64.84
71.0
50.0
-
95.0
105.0
12.0
2.25
Steel
6F
28 8M 85 -6F
28
71.30
70.08
75.0
50.0
-
95.0
105.0
15.0
2.55
Steel
6F
30 8M 85 -6F
30
76.39
75.13
83.0
55.0
-
95.0
105.0
15.0
3.00
Steel
6F
32 8M 85 -6F
32
81.49
80.16
87.0
60.0
-
95.0
105.0
15.0
3.57
Steel
6F
34 8M 85 -6F
34
86.58
85.22
91.0
70.0
-
95.0
105.0
15.0
4.00
Steel
6F
36 8M 85 -6F
36
91.67
90.30
98.5
70.0
-
95.0
105.0
15.0
4.50
Steel
6F
38 8M 85 -6F
38
96.77
95.39
103.0
75.0
-
95.0
105.0
15.0
5.08
Cast Iron
6F
40 8M 85 -6F
40
101.86
100.49
106.0
75.0
-
95.0
105.0
18.0
5.12
Cast Iron
6F
44 8M 85 -6F
44
112.05
110.67
119.0
75.0
-
95.0
105.0
18.0
6.60
Cast Iron
6F
48 8M 85 -6F
48
122.23
120.86
127.0
75.0
-
95.0
105.0
18.0
7.40
Cast Iron
6F
56 8M 85 -6F
56
142.60
141.23
148.0
80.0
-
95.0
105.0
20.0
10.15
Cast Iron
10WF
64 8M 85 -10WF
64
162.97
161.60
168.0
100.0
137.0
95.0
95.0
20.0
10.30
Cast Iron
10WF
72 8M 85 -10WF
72
183.35
181.97
192.0
110.0
158.0
95.0
95.0
20.0
11.40
Cast Iron
10A
80 8M 85 -10A
80
203.72
202.35
-
110.0
180.0
95.0
95.0
20.0
11.10
Cast Iron
10A
90 8M 85 -10A
90
229.18
227.81
-
110.0
204.0
95.0
95.0
20.0
12.80
Cast Iron
10A
112 8M 85 -10A
112
285.21
283.83
-
110.0
260.0
95.0
95.0
24.0
15.00
Cast Iron
10A
144 8M 85 -10A
144
366.69
365.32
-
120.0
341.0
95.0
95.0
24.0
20.80
Cast Iron
10A
168 8M 85 -10A
168
427.81
426.44
-
120.0
402.0
95.0
95.0
24.0
24.00
Cast Iron
10A
192 8M 85 -10A
192
488.92
487.55
-
130.0
460.0
95.0
95.0
24.0
30.60
