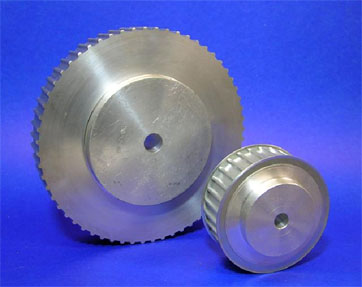

Metric AT10 pitch timing pulleys

AT10 (Pitch 10 mm) For belt width 32 mm

Material
Pulley Type
Designation
N. Of Teeth
PD
(mm)
OD
(mm)
FD
(mm)
HD
(mm)
F
(mm)
L
(mm)
b
(mm)
Weight (kg)
Aluminum
6F
47 AT 10/18-2
18
57.3
55.45
60
40
37
47
10
0.26
Aluminum
6F
47 AT 10/19-2
19
60.48
58.6
66
44
37
47
10
0.3
Aluminum
6F
47 AT 10/20-2
20
63.66
61.8
66
46
37
47
12
0.32
Aluminum
6F
47 AT 10/22-2
22
70.03
68.15
75
52
37
47
12
0.4
Aluminum
6F
47 AT 10/24-2
24
76.39
74.55
83
58
37
47
12
0.49
Aluminum
6F
47 AT 10/25-2
25
79.58
77.7
83
60
37
47
12
0.52
Aluminum
6F
47 AT 10/26-2
26
82.76
80.9
87
60
37
47
12
0.56
Aluminum
6F
47 AT 10/27-2
27
85.94
84.1
91
60
37
47
12
0.61
Aluminum
6F
47 AT 10/28-2
28
89.13
87.25
93
60
37
47
12
0.65
Aluminum
6F
47 AT 10/30-2
30
95.49
93.65
97
60
37
47
12
0.73
Aluminum
6F
47 AT 10/32-2
32
101.86
100
106
65
37
47
12
0.84
Aluminum
6F
47 AT 10/36-2
36
114.59
112.75
119
70
37
47
16
1.07
Aluminum
6F
47 AT 10/40-2
40
127.32
125.45
131
80
37
47
16
1.34
Aluminum
6
47 AT 10/44-0
44
140.06
138.2

88
37
47
16
1.6
Aluminum
6
47 AT 10/48-0
48
152.79
150.95

95
37
47
16
1.9
Aluminum
6
47 AT 10/60-0
60
190.99
189.1

110
37
47
16
2.95
