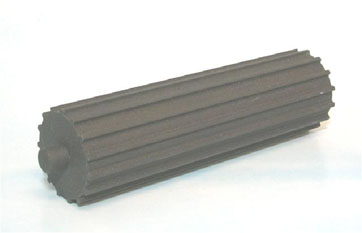

Metric AT10 pitch timing bars, Steel
|
|
|
 |
AT10 Pitch 10 mm
Material |
Part No. |
N. of teeth |
PD
(mm) |
OD
(mm) |
UL
(mm) |
L
(mm) |
Steel |
AT10-14 |
14 |
44.56 |
42.7 |
160 |
160 |
Steel |
AT10-15 |
15 |
47.75 |
45.9 |
160 |
160 |
Steel |
AT10-16 |
16 |
50.93 |
49.05 |
160 |
160 |
Steel |
AT10-17 |
17 |
54.11 |
52.25 |
160 |
160 |
Steel |
AT10-18 |
18 |
57.29 |
55.45 |
160 |
160 |
Steel |
AT10-19 |
19 |
60.48 |
58.6 |
160 |
160 |
Steel |
AT10-20 |
20 |
63.66 |
61.8 |
160 |
160 |
Steel |
AT10-21 |
21 |
66.84 |
65 |
160 |
160 |
Steel |
AT10-22 |
22 |
70.03 |
68.15 |
160 |
160 |
Steel |
AT10-23 |
23 |
73.2 |
71.35 |
160 |
160 |
Steel |
AT10-24 |
24 |
76.39 |
74.55 |
160 |
160 |
Steel |
AT10-25 |
25 |
79.58 |
77.7 |
160 |
160 |
Steel |
AT10-26 |
26 |
82.76 |
80.9 |
160 |
160 |
Steel |
AT10-27 |
27 |
85.95 |
84.1 |
160 |
160 |
Steel |
AT10-28 |
28 |
89.12 |
87.25 |
160 |
160 |
Steel |
AT10-29 |
29 |
92.21 |
90.47 |
160 |
160 |
Steel |
AT10-30 |
30 |
95.49 |
93.65 |
160 |
160 |
Steel |
AT10-31 |
31 |
98.67 |
96.8 |
160 |
160 |
Steel |
AT10-32 |
32 |
101.86 |
100 |
160 |
160 |
Steel |
AT10-33 |
33 |
105.04 |
103.2 |
160 |
160 |
Steel |
AT10-34 |
34 |
108.22 |
106.4 |
160 |
160 |
Steel |
AT10-35 |
35 |
111.41 |
109.55 |
160 |
160 |
Steel |
AT10-36 |
36 |
114.59 |
112.75 |
160 |
160 |
