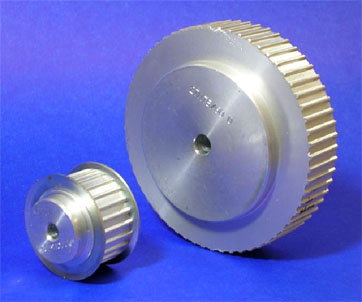

Metric AT5 pitch timing pulleys

AT5 (Pitch 5 mm) For belt width 10 mm

Material
Pulley Type
Designation
N. Of Teeth
PD
(mm)
OD
(mm)
FD
(mm)
HD
(mm)
F
(mm)
L
(mm)
b
(mm)
Weight (kg)
Aluminum
6F
21 AT 5/12-2
12
19.1
17.85
23
11
15
21

0.02
Aluminum
6F
21 AT 5/14-2
14
22.28
21.05
25
14
15
21

0.02
Aluminum
6F
21 AT 5/15-2
15
23.87
22.65
28
16
15
21
6
0.02
Aluminum
6F
21 AT 5/16-2
16
25.46
24.2
32
18
15
21
6
0.03
Aluminum
6F
21 AT 5/18-2
18
28.65
27.4
32
20
15
21
6
0.03
Aluminum
6F
21 AT 5/19-2
19
30.24
29
36
22
15
21
6
0.04
Aluminum
6F
21 AT 5/20-2
20
31.83
30.6
36
23
15
21
6
0.04
Aluminum
6F
21 AT 5/22-2
22
35.01
33.85
38
24
15
21
6
0.05
Aluminum
6F
21 AT 5/24-2
24
38.2
37
42
26
15
21
6
0.06
Aluminum
6F
21 AT 5/25-2
25
39.79
38.6
44
26
15
21
6
0.06
Aluminum
6F
21 AT 5/26-2
26
41.38
40.2
44
26
15
21
6
0.06
Aluminum
6F
21 AT 5/27-2
27
42.97
41.8
48
30
15
21
8
0.07
Aluminum
6F
21 AT 5/28-2
28
44.56
43.35
48
32
15
21
8
0.08
Aluminum
6F
21 AT 5/30-2
30
47.75
46.55
51
34
15
21
8
0.09
Aluminum
6F
21 AT 5/32-2
32
50.93
49.7
54
38
15
21
8
0.1
Aluminum
6F
21 AT 5/36-2
36
57.3
56.05
63
38
15
21
8
0.13
Aluminum
6F
21 AT 5/40-2
40
63.66
62.45
66
40
15
21
8
0.15
Aluminum
6F
21 AT 5/42-2
42
66.84
65.6
71
40
15
21
8
0.18
Aluminum
6
21 AT 5/44-0
44
70.03
68.8

45
15
21
8
0.17
Aluminum
6
21 AT 5/48-0
48
76.39
75.15

50
15
21
8
0.21
Aluminum
6
21 AT 5/60-0
60
95.49
94.25

65
15
21
8
0.33
