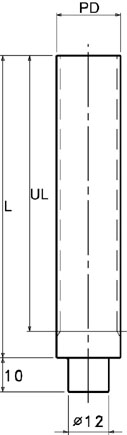

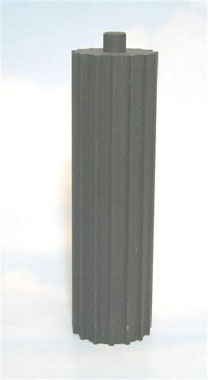

Metric AT5 pitch timing bars, Steel
|
|
|
 |
AT5 Pitch 5 mm
Material |
Part No. |
N. of teeth |
PD
(mm) |
OD
(mm) |
UL
(mm) |
L
(mm) |
Steel |
AT5-12 |
12 |
19.1 |
17.85 |
125 |
140 |
Steel |
AT5-13 |
13 |
20.7 |
19.45 |
125 |
140 |
Steel |
AT5-14 |
14 |
22.29 |
21.05 |
132 |
140 |
Steel |
AT5-15 |
15 |
23.88 |
22.65 |
132 |
140 |
Steel |
AT5-16 |
16 |
25.47 |
24.2 |
140 |
140 |
Steel |
AT5-17 |
17 |
27.06 |
25.8 |
140 |
140 |
Steel |
AT5-18 |
18 |
28.65 |
27.4 |
140 |
140 |
Steel |
AT5-19 |
19 |
30.25 |
29 |
140 |
140 |
Steel |
AT5-20 |
20 |
31.83 |
30.6 |
160 |
160 |
Steel |
AT5-21 |
21 |
33.43 |
32.3 |
160 |
160 |
Steel |
AT5-22 |
22 |
35.02 |
33.85 |
160 |
160 |
Steel |
AT5-23 |
23 |
36.62 |
35.45 |
160 |
160 |
Steel |
AT5-24 |
24 |
38.21 |
37 |
160 |
160 |
Steel |
AT5-25 |
25 |
39.8 |
38.6 |
160 |
160 |
Steel |
AT5-26 |
26 |
41.39 |
40.2 |
160 |
160 |
Steel |
AT5-27 |
27 |
42.98 |
41.8 |
160 |
160 |
Steel |
AT5-28 |
28 |
44.58 |
43.35 |
160 |
160 |
Steel |
AT5-29 |
29 |
46.17 |
44.95 |
160 |
160 |
Steel |
AT5-30 |
30 |
47.76 |
46.55 |
160 |
160 |
Steel |
AT5-31 |
31 |
49.35 |
48.15 |
160 |
160 |
Steel |
AT5-32 |
32 |
50.94 |
49.7 |
160 |
160 |
Steel |
AT5-33 |
33 |
52.54 |
51.3 |
160 |
160 |
Steel |
AT5-34 |
34 |
54.13 |
52.85 |
160 |
160 |
Steel |
AT5-35 |
35 |
55.72 |
54.45 |
160 |
160 |
Steel |
AT5-36 |
36 |
57.31 |
56.05 |
160 |
160 |
