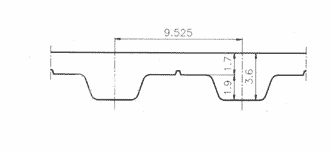

L (3/8")
WIDTH [in] MAX TRACTION LOAD [N] MAX TRACTION LOAD JOINED [N] BREAKING STRENGTH [N] BELT WEIGHT [kg/m] 0.37 630 315 1860 0.025 0.50 945 470 2940 0.030 0.75 1490 745 4650 0.045 1.00 2050 1025 6050 0.060 1.50 3150 1575 9800 0.090 2.00 4250 2125 13230 0.12
Tolerances for belt width (mm) ±0,5 Tolerances for nominal thickness (mm) ±0,30
