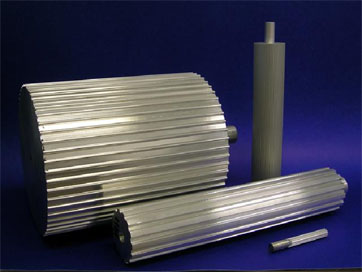

Inch Pitch Timing Bars, Aluminum

MXL Pitch 0.080"

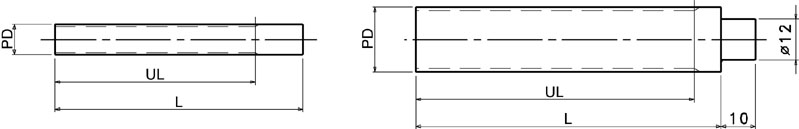

Part No.
Designation
N. Of Teeth
PD (mm)
OD (mm)
UL (mm)
L (mm)
10MXL50A
10 MXL
10
6.47
5.97
50
75
11MXL50A
11 MXL
11
7.11
6.6
50
75
12MXL50A
12 MXL
12
7.76
7.26
50
75
13MXL50A
13 MXL
13
8.41
7.9
50
75
14MXL50A
14 MXL
14
9.06
8.56
50
75
15MXL50A
15 MXL
15
9.7
9.19
50
75
16MXL50A
16 MXL
16
10.35
9.83
50
75
17MXL50A
17 MXL
17
11
10.49
50
75
18MXL50A
18 MXL
18
11.64
11.12
50
75
19MXL90A
19 MXL
19
12.29
11.78
90
120
20MXL90A
20 MXL
20
12.94
12.42
90
120
21MXL125A
21 MXL
21
13.58
13.08
125
150
22MXL125A
22 MXL
22
14.23
13.72
125
140
23MXL125A
23 MXL
23
14.88
14.38
125
140
24MXL125A
24 MXL
24
15.52
15.01
125
140
25MXL125A
25 MXL
25
16.17
15.67
125
140
26MXL125A
26 MXL
26
16.82
16.31
125
140
27MXL125A
27 MXL
27
17.46
16.94
125
140
28MXL125A
28 MXL
28
18.11
17.6
125
140
29MXL125A
29 MXL
29
18.76
18.24
125
140
30MXL125A
30 MXL
30
19.4
18.9
125
140
32MXL125A
32 MXL
32
20.7
20.19
125
140
34MXL132A
34 MXL
34
21.99
21.49
132
150
35MXL132A
35 MXL
35
22.64
22.12
132
140
36MXL132A
36 MXL
36
23.28
22.78
132
140
38MXL140A
38 MXL
38
24.58
24.08
140
150
40MXL140A
40 MXL
40
25.87
25.37
140
150
42MXL140A
42 MXL
42
27.17
26.67
140
140
44MXL140A
44 MXL
44
28.46
27.94
140
140
45MXL140A
45 MXL
45
29.11
28.6
140
140
48MXL140A
48 MXL
48
31.05
30.53
140
140
50MXL160A
50 MXL
50
32.34
31.83
160
170
60MXL160A
60 MXL
60
38.81
38.3
160
160
64MXL160A
64 MXL
64
41.4
40.89
160
160
65MXL160A
65 MXL
65
42.04
41.53
160
160
70MXL160A
70 MXL
70
45.28
44.78
160
160
72MXL160A
72 MXL
72
46.57
46.05
160
160
75MXL160A
75 MXL
75
48.51
48.01
160
160
90MXL160A
90 MXL
90
58.21
57.71
160
160
110MXL160A
110 MXL
110
71.15
70.64
160
160
