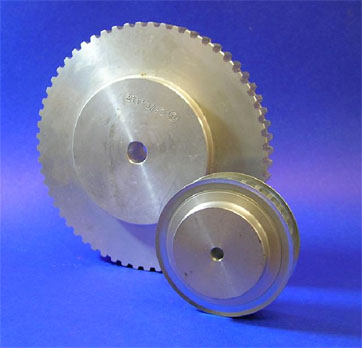

Metric T10 pitch timing pulleys

T10 (Pitch 10 mm) For belt width 16 mm

Material
Pulley Type
Designation
N. Of Teeth
PD
(mm)
OD
(mm)
FD
(mm)
HD
(mm)
F
(mm)
L
(mm)
b
(mm)
Weight (kg)
Aluminum
6F
31 T 10/12-2
12
38.2
36.35
42
28
21
31
6
0.08
Aluminum
6F
31 T 10/14-2
14
44.56
42.7
48
32
21
31
8
0.1
Aluminum
6F
31 T 10/15-2
15
47.75
45.9
51
32
21
31
8
0.12
Aluminum
6F
31 T 10/16-2
16
50.93
49.05
54
35
21
31
8
0.13
Aluminum
6F
31 T 10/18-2
18
57.3
55.45
60
40
21
31
8
0.17
Aluminum
6F
31 T 10/19-2
19
60.48
58.6
66
44
21
31
8
0.19
Aluminum
6F
31 T 10/20-2
20
63.66
61.8
66
46
21
31
8
0.21
Aluminum
6F
31 T 10/22-2
22
70.03
68.15
75
52
21
31
8
0.26
Aluminum
6F
31 T 10/24-2
24
76.39
74.55
83
58
21
31
8
0.29
Aluminum
6F
31 T 10/25-2
25
79.58
77.7
83
60
21
31
8
0.31
Aluminum
6F
31 T 10/26-2
26
82.76
80.9
87
60
21
31
8
0.36
Aluminum
6F
31 T 10/27-2
27
85.94
84.1
91
60
21
31
8
0.37
Aluminum
6F
31 T 10/28-2
28
89.13
87.25
93
60
21
31
8
0.4
Aluminum
6F
31 T 10/30-2
30
95.49
93.65
97
60
21
31
8
0.44
Aluminum
6F
31 T 10/32-2
32
101.86
100
106
65
21
31
10
0.49
Aluminum
6F
31 T 10/36-2
36
114.59
112.75
119
70
21
31
10
0.62
Aluminum
6F
31 T 10/40-2
40
127.32
125.45
131
80
21
31
10
0.77
Aluminum
6
31 T 10/44-0
44
140.06
138.2

88
21
31
10
1
Aluminum
6
31 T 10/48-0
48
152.79
150.95

95
21
31
16
1.09
Aluminum
6
31 T 10/60-0
60
190.99
189.1

110
21
31
16
1.7
