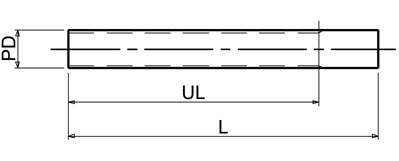

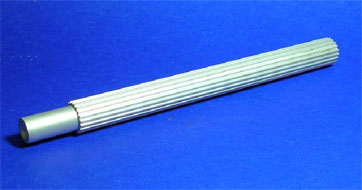

Metric T2.5 pitch timing bars

Material
Part No.
N. of teeth
PD
(mm)
OD
(mm)
UL
(mm)
L
(mm)
Aluminum
T2.5- 10
10
8.05
7.42
50
75
Aluminum
T2.5- 12
12
9.6
9
50
75
Aluminum
T2.5- 13
13
10.4
9.8
50
75
Aluminum
T2.5- 14
14
11.2
10.6
50
75
Aluminum
T2.5- 15
15
12
11.4
50
75
Aluminum
T2.5- 16
16
12.8
12.2
50
75
Aluminum
T2.5- 17
17
13.6
13
50
75
Aluminum
T2.5- 18
18
14.4
13.8
50
75
Aluminum
T2.5- 19
19
15.2
14.6
125
150
Aluminum
T2.5- 20
20
16
15.4
125
150
Aluminum
T2.5- 21
21
16.8
16.2
125
150
Aluminum
T2.5- 22
22
17.6
17
125
140
Aluminum
T2.5- 24
24
19.15
18.55
125
140
Aluminum
T2.5- 26
26
20.75
20.15
125
140
Aluminum
T2.5- 27
27
21.55
20.95
132
150
Aluminum
T2.5- 28
28
22.35
21.75
132
150
Aluminum
T2.5- 29
29
23.15
22.55
132
150
Aluminum
T2.5- 30
30
23.95
23.35
140
150
Aluminum
T2.5- 32
32
25.55
24.95
140
150
Aluminum
T2.5- 34
34
27.15
26.55
140
150
Aluminum
T2.5- 35
35
27.95
27.35
140
150
Aluminum
T2.5- 36
36
28.75
28.1
140
150
Aluminum
T2.5- 38
38
30.3
29.7
140
150
Aluminum
T2.5- 40
40
31.9
31.3
160
170
Aluminum
T2.5- 42
42
33.5
32.9
160
170
Aluminum
T2.5- 44
44
35.1
34.5
160
170
Aluminum
T2.5- 45
45

35.3
160
170
Aluminum
T2.5- 48
48
38.3
37.7
160
170
Aluminum
T2.5- 50
50
39.89
39.29
160
160
Aluminum
T2.5- 60
60
47.85
47.25
160
160
Aluminum
T2.5- 65
65
51.8
51.2
160
160
Aluminum
T2.5- 70
70
55.8
55.2
160
160
Aluminum
T2.5- 72
72
57.4
56.8
160
160
Aluminum
T2.5- 90
90
71.72
71.12
160
160
Aluminum
T2.5-100
100
79.68
79.08
160
160
