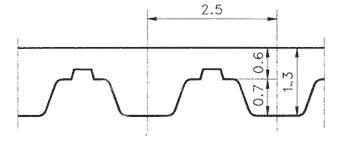

| b Belt width, mm |
4 |
6 |
8 |
10 |
12 |
| B Pulley width, mm |
8 |
10 |
12 |
14 |
16 |
| Tolerances for belt width |
±0,3 |
| Tolerances for nominal thickness hs |
±0,15 |
Min. diameter of the Idler Pulley placed inside the belt = 20 mm
Min. diameter of the Idler Pulley placed outside the belt = 18 mm |
|
|
| CODE |
LENGTH(mm) |
nº TEETH (z) |
| 120 |
120 |
48 |
| 145 |
145 |
58 |
| 160 |
160 |
64 |
| 177,5 |
177,5 |
71 |
| 180 |
180 |
72 |
| 182,5 |
182.5 |
73 |
| 200 |
200 |
80 |
| 230 |
230 |
92 |
| 245 |
245 |
98 |
| 265 |
265 |
106 |
| 285 |
285 |
114 |
| 290 |
290 |
116 |
| 305 |
305 |
122 |
| 317,5 |
317,5 |
127 |
| 330 |
330 |
132 |
| 380 |
380 |
152 |
| 420 |
420 |
168 |
| 480 |
480 |
192 |
| 500 |
500 |
200 |
| 600 |
600 |
240 |
| 620 |
620 |
248 |
| 650 |
650 |
260 |
| 680 |
680 |
272 |
| 780 |
780 |
312 |
| 880 |
880 |
352 |
| 915 |
915 |
366 |
| 950 |
950 |
380 |
| 1185 |
1185 |
474 |
|
|
|
