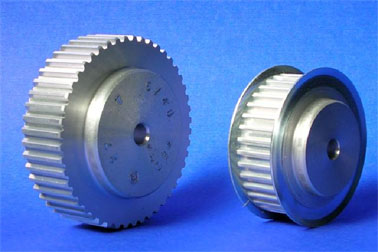

Metric T5 pitch timing pulleys

T5 (Pitch 5 mm) For belt width 25 mm

Material

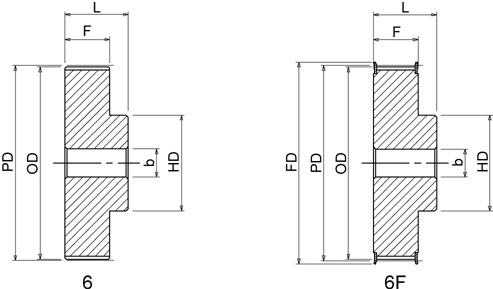

Pulley Type
Designation
N. Of Teeth
PD
(mm)
OD
(mm)
FD
(mm)
HD
(mm)
F
(mm)
L
(mm)
b
(mm)
Weight (kg)












Aluminum
6F
36 T 5/10-2
10
15.92
15.05
19.5
8
30
36

0.02
Aluminum
6F
36 T 5/12-2
12
19.1
18.25
23
11
30
36

0.03
Aluminum
6F
36 T 5/14-2
14
22.28
21.45
25
14
30
36

0.04
Aluminum
6F
36 T 5/15-2
15
23.87
23.05
28
16
30
36
6
0.04
Aluminum
6F
36 T 5/16-2
16
25.46
24.6
32
18
30
36
6
0.042
Aluminum
6F
36 T 5/18-2
18
28.65
27.8
32
20
30
36
6
0.06
Aluminum
6F
36 T 5/19-2
19
30.24
29.4
36
22
30
36
6
0.07
Aluminum
6F
36 T 5/20-2
20
31.83
31
36
23
30
36
6
0.08
Aluminum
6F
36 T 5/22-2
22
35.01
34.25
38
24
30
36
6
0.08
Aluminum
6F
36 T 5/24-2
24
38.2
37.4
42
26
30
36
8
0.11
Aluminum
6F
36 T 5/25-2
25
39.79
39
44
26
30
36
8
0.12
Aluminum
6F
36 T 5/26-2
26
41.38
40.6
44
26
30
36
8
0.12
Aluminum
6F
36 T 5/27-2
27
42.97
42.2
48
30
30
36
8
0.13
Aluminum
6F
36 T 5/28-2
28
44.56
43.75
48
32
30
36
8
0.13
Aluminum
6F
36 T 5/30-2
30
47.75
46.95
51
34
30
36
8
0.15
Aluminum
6F
36 T 5/32-2
32
50.93
50.1
54
38
30
36
8
0.18
Aluminum
6F
36 T 5/36-2
36
57.3
56.45
63
38
30
36
8
0.23
Aluminum
6F
36 T 5/40-2
40
63.66
62.85
66
40
30
36
8
0.28
Aluminum
6F
36 T 5/42-2
42
66.84
66
71
40
30
36
8
0.29
Aluminum
6
36 T 5/44-0
44
70.03
69.2

45
30
36
8
0.32
Aluminum
6
36 T 5/48-0
48
76.39
75.55

50
30
36
8
0.4
Aluminum
6
36 T 5/60-0
60
95.49
94.65

65
30
36
8
0.62
