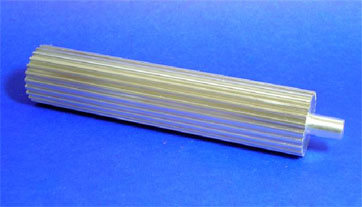

Metric T5 pitch timing bars

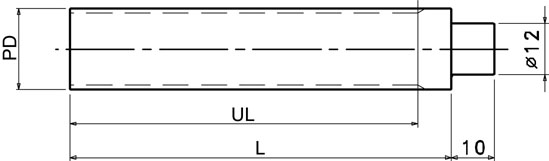

Material
Part No.
N. of teeth
PD
(mm)
OD
(mm)
UL
(mm)
L
(mm)
Aluminum
T5- 10
10
15.92
15.05
125
140
Aluminum
T5- 11
11
17.51
16.65
125
140
Aluminum
T5- 12
12
19.01
18.25
125
140
Aluminum
T5- 13
13
20.7
19.85
125
140
Aluminum
T5- 14
14
22.29
21.45
132
140
Aluminum
T5- 15
15
23.88
23.05
132
140
Aluminum
T5- 16
16
25.47
24.6
140
140
Aluminum
T5- 17
17
27.06
26.2
140
140
Aluminum
T5- 18
18
28.65
27.8
140
140
Aluminum
T5- 19
19
30.25
29.4
140
140
Aluminum
T5- 20
20
31.83
31
160
160
Aluminum
T5- 21
21
33.43
32.7
160
160
Aluminum
T5- 22
22
35.02
34.25
160
160
Aluminum
T5- 23
23
36.62
35.85
160
160
Aluminum
T5- 24
24
38.21
37.4
160
160
Aluminum
T5- 25
25
39.8
39
160
160
Aluminum
T5- 26
26
41.39
40.6
160
160
Aluminum
T5- 27
27
42.98
42.2
160
160
Aluminum
T5- 28
28
44.58
43.75
160
160
Aluminum
T5- 29
29
46.17
45.35
160
160
Aluminum
T5- 30
30
47.76
46.95
160
160
Aluminum
T5- 32
32
50.94
50.1
160
160
Aluminum
T5- 34
34
54.13
53.25
160
160
Aluminum
T5- 35
35
55.72
54.85
160
160
Aluminum
T5- 36
36
57.31
56.45
160
160
Aluminum
T5- 37
37
58.9
58.06
160
160
Aluminum
T5- 38
38
60.5
59.65
160
160
Aluminum
T5- 40
40
63.66
62.85
160
160
Aluminum
T5- 42
42
66.86
66
160
160
Aluminum
T5- 44
44
70.05
69.2
160
160
Aluminum
T5- 45
45
71.64
70.8
160
160
Aluminum
T5- 46
46
73.23
72.4
160
160
Aluminum
T5- 48
48
76.42
75.55
160
160
Aluminum
T5- 50
50
79.6
78.75
160
160
